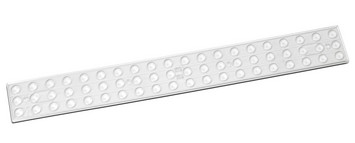

Linear Optics 3R for SMD Comfort-B
Linear 3-row optics for LED Line SMD Comfort-B 3R modules
Due to brilliant surfaces and light distributions the optics made of high-quality PMMA offer a variety of usage in application fields of industry, retail, corridor and shelf lighting. Fastening the optic using fixing clips enables a simple and fast assembly without visible screw heads. The fixing clips are fastening the optic and the LED module as well in a single workstep. Due to length of 500 mm and the minimal construction height of only 4.2 mm the optics are ideal for luminaires with lengths of 1.5 m and extremely flat luminaire designs.
Product benefits
- Glareless and excellent lens desgin
- Suitable for luminaires with impact resistance IK03/0.35
- UV-resistance
- Variants with UGR optimized light distributions available
- Optical efficiency: up to 95%
Choose a variant:
Linear Optics 3R for SMD Comfort-B 60 Single Lenses 500 mm IP40
| Ref. No. | Type | Light distribution | Light distribution | Family data sheet | Material | Light transmission | Surface texture | Length | Width | Height | LED technology |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 571094 | 96304 |
|
Extra Wide 110° | PMMA | clear | mat | 499.4mm | 62mm | 4.2mm | SMD | |
| 571093 | 96303 |
|
Medium 60° | PMMA | clear | mat | 499.4mm | 62mm | 4.2mm | SMD | |
| 571092 | 96302 |
|
High Rack | PMMA | clear | mat | 499.4mm | 62mm | 4.2mm | SMD | |
| 569527 | 96300 |
|
Wide 90° | PMMA | clear | mat | 499.4mm | 62mm | 4.2mm | SMD | |
| 569528 | 96301 |
|
Retail SYM 1 | PMMA | clear | mat | 499.4mm | 62mm | 4.2mm | SMD | |
| 570378 | 96304 |
|
Diffuse 110° | PMMA | diffuse | mat | 499.4mm | 62mm | 4.2mm | SMD |
| Ref. No. | Type | Light distribution |
|---|---|---|
| 571094 | 96304 | Extra Wide 110° |
| 571093 | 96303 | Medium 60° |
| 571092 | 96302 | High Rack |
| 569527 | 96300 | Wide 90° |
| 569528 | 96301 | Retail SYM 1 |
| 570378 | 96304 | Diffuse 110° |
